IoT Long Range Wireless Machine Uptime Monitoring Sensor

Introducing our Battery-Powered Long-Range Wireless Machine and Production Uptime Monitor, a revolutionary solution designed to effortlessly track machine and production uptime in industrial settings. This Machine Uptime Monitoring Sensor is powered by advanced technology including acceleration, magnetometer, digital input, and current sensor signals, this device offers real-time monitoring capabilities with unmatched accuracy. With its long-range wireless radio, it ensures seamless communication over extended distances, providing comprehensive insights into operational efficiency. Compact, durable, and powered by long-lasting batteries, our monitor enables uninterrupted monitoring, empowering businesses to optimize production processes, minimize downtime, and achieve peak performance with ease.

Applications for Industrial Wireless Machine Uptime Monitor Sensor

  • Number Of Pulse Counting
  • Turnstile Counter
  • Count The Number of Times A Door Open Closes
  • To Count The Number Of Button Pushes
  • IoT Digital Mechanical Counter
  • Factory Automation
  • Component of Low Power IoT System
  • As a Mechanical Counter to IoT Cloud Interface Module

Read more About Uptime Monitor Sensor

Please note: This product is compatible with PNP and NPN output Photo Sensors, though the Photo Sensor is not included. The user can set data transmission intervals, with the device sending data periodically.

This device requires an External Power Supply if it will be connected to a sensor that needs power to function such as the Break Beam Sensor.

Machine Utilization Sensor Transmission Interval

This device sends data periodically based on user-preset timing intervals and user defined counter threshold.



Standard Lead Times

Standard lead times are 3-5 business days as we manufacture and test the product at the time of order. Larger orders may require additional time.

Product Identification
SKU: PR55-87A
UPC: 689860069985
Country of Origin: US
HTS Code: 854231
1+ Pieces
$303.95/ea
10+ Pieces
$291.79/ea
25+ Pieces
$285.71/ea
100+ Pieces
$267.48/ea

Wireless Communication OptionsChange

Please choose a wireless communications module that is legal for use in your region.  Please note: transmission range will be affected by the product options selected below.  If you are in North America, we strongly suggest the 900MHz option for best results.  If you are in Europe, the 2.4GHz and 868MHz versions are the only legal options.  The 2.4GHz option is now certified for use worldwide.  Please note the 2.4GHz version will not penetrate objects as well as the 900MHz and 868MHz versions.  If you need help choosing a wireless option, please contact us.  This option will determine how we build this product and any applicable accessories that may be displayed below.

100Amp AC Current SensorChange

AC Current Sensor

M12 5P PG7 Connector for WiringChange

An M12 PG7 Connector or Cable is necessary to Connect to the Pre-installed M12 Connector

Break Beam SensorChange

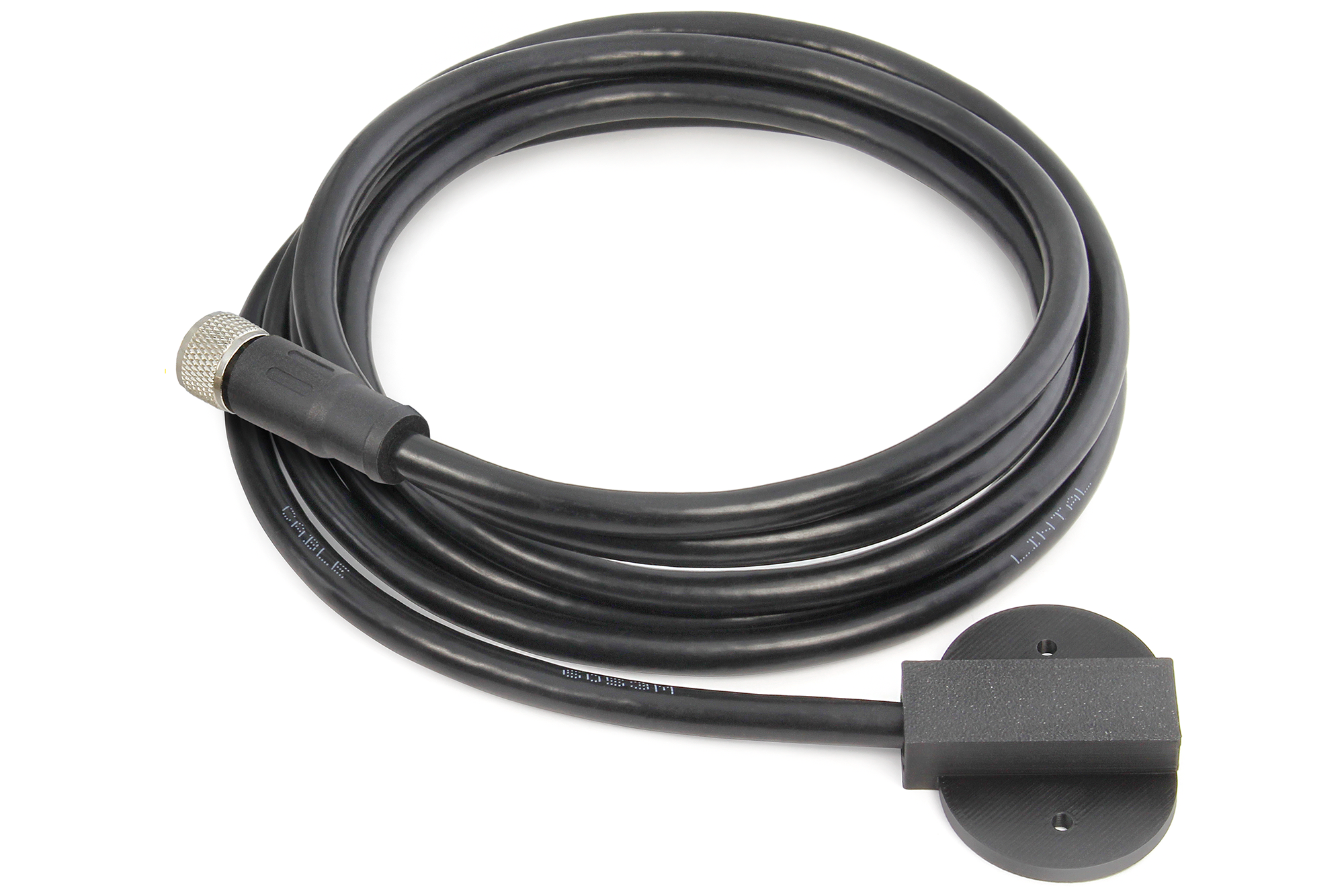

Optional Vibration Magnetometer ProbeChange

Industrial Wireless Magnetic AttachmentsChange

Would you like a power supply?Change

NCD Controllers Need Power. Standard NCD Power Supplies use a 2.1mm Barrel Connector with 12VDC (center positive) rated at 1.25 Amps (minimum).

Wireless Interface Options for NCD Enterprise IoT Sensors & DevicesChange

Where would you like to send your sensor data?

NCD Enterprise IoT Sensors and Devices are capable of communicating to computers and popular cloud platforms using a variety of interface technologies.  Please choose the communication interface technologies that best matches your application requirements.  You may choose more than one, as NCD Wireless Sensors are capable of sending data to multiple destinations simultaneously.  If you do not already have a receiver for your wireless sensor, you must select a sensor receiver solution below. *Note for Vibration Sensors Vibration data is a more complex data structure and is not recommended to be used with embedded devices such as the MQTT, AWS, or Azure gateways.
