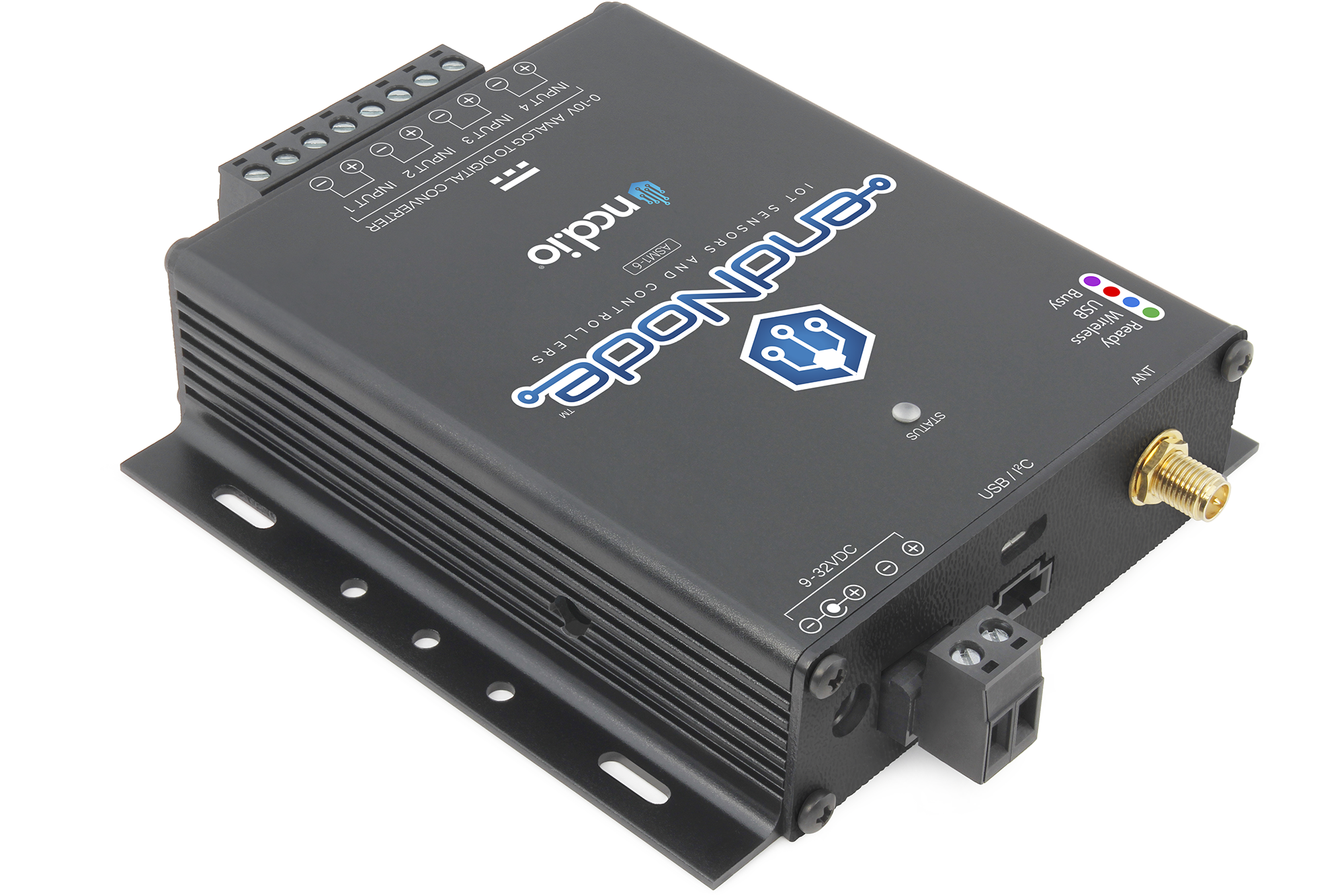

  • 4-Channel 12-Bit Wireless 0-10V Input endNode with USB
  • Each Analog Input Includes a Dedicated Non-Shared Ground Input
  • For Use with Existing Sensors that Already Include a Power Solution
  • Long Range Wireless Communications with 128-Bit AES Encryption
  • USB Communications Interface with Virtual COM Port Access
  • Dual 9-32V DC Power Interface with Power and RGB Status LEDs
  • Long Range Wireless Communications up to 2 Miles at 900MHz
  • 900MHz, 868MHz and 2.4GHz Wireless Options with Antenna
  • Pluggable Connectors for Wireless 0-10V Input and Power
  • Based on NCD endNode Wireless I²C Architecture



Wireless 0-10V Inputs

Introducing the world’s most powerful Wireless 0-10V input receiver.  The ASM1-6 makes it easy to read industrial 0-10V sensors with an incredible 2-Mile wireless communication range using 128-Bit AES Encryption.  Read industrial 0-10V pressure sensors, temperature sensors, flow meters, ultrasonic sensors, level sensors, force sensors, weight sensors, distance sensors, strain sensors, and much more with a 12-Bit Resolution.  Use several ASM1-6 endNodes and talk to each endNode using secure wireless communications.  Read wireless 0-10V inputs on the factory floor, as we have tested this wireless technology in factories in excess of 1 mile indoor line-of-sight with heavy industrial machines operating.  This communications technology is rock solid in electrically noisy environments.  Read wireless 0-10V inputs in industrial buildings, as this wireless technology has the best wireless penetration through walls currently available.

With a wireless 0-10V input, many types of variable resistance sensors may be used as well.  Connect magnetic pot meters to read micro movements in buildings for structural monitoring using wireless 0-10V input as a wireless resistance input.  Connect wireless 0-10V inputs to ground moisture sensors for live readings in a wide variety of soil hydration monitoring applications.  Wireless 0-10V inputs may also be used to level sensors and pressure sensors for industrial wireless applications.  Connect small solar panels to the wireless 0-10V inputs for monitoring daylight conditions and control lighting as necessary.  Solar panels offer a significantly greater operational life than traditional CDS photocells in light monitoring applications.

Wireless Targeting and Mesh Communications

Each endNode controller includes a unique serial number.  This serial number is used to target the remote endNode controller with a 4-Channel 0-10V input read request.  Query each endNode up to six times per second using wireless communications.  Use a single computer to target several endNode devices in the area or use multiple computers to talk to multiple wireless endNodes.  endNodes form a wireless mesh to extend communication range beyond the typical 2-Mile line-of-sight range by hopping data between devices to reach the intended target device.  All endNode devices are secured using 128-Bit AES Encryption.  NCD endNode devices may also be used to repeat data from NCD Enterprise wireless sensors, as they act as a mesh network of repeaters to help sensors extend the wireless range.  All endNode devices are available in 900MHz, 868MHz and 2.4GHz versions, but may have a reduced wireless range when using 868MHz and 2.4GHz options.

Definition of 0-10V Inputs

0-10V Inputs are best defined as inputs that accept changes in voltage in the range of 0-10V; however, the range may be wider in some applications.  The 0-10V ADC inputs do not share a common ground, making it possible to read inputs from many sources without grounding conflicts or differentials.  endNode 0-10V Inputs are converted to digital signals using an internal Analog to Digital Converter with 12-Bit Resolution.   In the case of endNode devices, 0-10V Inputs are best suited in applications where existing sensors are already installed that need to be retrofitted to modern IoT communications technology.

USB 0-10V Inputs

All endNode devices are equipped with a USB port.  Use the USB interface to read 0-10V input channels.  USB is also used for advanced configuration using our Windows 10 Alpha Station Software.  endNode devices mount as a Virtual COM Port on your PC to simplify communications.  endNode devices are hardware compatible with Mac and Linux computers, we can assist you in using endNode devices on these platforms, but specific software has not yet been developed.  Cross-platform Node-Red support for endNode devices is planned.

Expand endNodes using nodeLynk

endNode devices are expandable to add additional hardware for sensing and control capabilities using nodeLynk expansions.

What is nodeLynk?

Chain expansion devices using nodeLynk. Connect a wide variety of accessories to expand the capabilities of a nodeLynk compatible controller.  Use nodeLynk to add Relay Controllers, Sensors, PWM Drivers, Displays, and a wide variety of 4-20mA, 0-10V ADCs and DACs, as well as a wide array of TTL & Isolated GPIO devices.  All nodeLynk devices use I2C communications to chain devices together.  nodeLynk is an easy way to expand functionality without soldering.  nodeLynk allows expansion in seconds so you can focus on your software and firmware development.

endNode Wireless I2C Expansion
endNode Device (left) connects to a chain of nodeLynk expansion devices.

Wireless I2C Communications

endNode devices include a I2C expansion port, providing many wireless I2C expansion options.  NCD endNode devices convert data from Wireless and USB Communications into I2C Communications using our custom conversion processor.  Since I2C communications is the foundation technology for all sensors manufactured today, NCD endNode controllers are capable of communicating to all I2C devices ever manufactured today and well into the future, giving endNode controllers limitless expansion possibilities.  I2C plays a major role in IoT applications, as it’s not possible to talk to most sensors without some form of I2C conversion along the way.  Because endNode controllers are a data conversion technology, firmware upgrades will not be necessary to add support for future I2C expansions and devices.  Here’s a current list of all the I2C devices that will plug into endNode controllers.

ProXR Enterprise Command Set

Use the I2C Expansion port to plug in relays and try out our ProXR Enterprise command set.  Turn relays on or off, Trigger relay timers, pulse relays, control relays in sequences, toggle relays, and much more.  The ProXR Enterprise command set provides users with simple commands that are converted to low-level I2C commands for relay control applications.  Integrated FRAM memory retains relay state when power is removed, and recovers relay state on power-up.  Check our our line of I2C Relay controllers compatible with endNode.

endNode Power Requirements

endNode devices were designed to operate continuously from a 9-32V external power supply.  A +12VDC international power supply is included.  A two-position pluggable terminal block is also included for direct wired applications.  A red power LED indicates power status while a RGB LED is used to indicate processor status.

Wireless Communications with endNodes

Make the most of your endNode devices by communicating using wireless communications.  endNodes support the use of multiple modems simultaneously, so many computers, servers, and embedded devices can access endNodes.  endNodes support targeting via the serial number.  Simply package up the serial number and the command together into a data frame using the NCD API Calculator and your command will be executed by the endNode controller.  Then endNode will report back ONLY to the modem that initiated communications.  In this way, endNodes are capable of services many computers as long as the wireless traffic does not become excessively saturated.  Below you will find many popular modem options designed to speak to NCD endNode devices using the communication technologies you are most comfortable working with.

endNode ASM1-3 IoT Relay Controller 4-Channel 10-Amp USB and Wireless

Mega Modem Communications with endNode Devices

The Mega Modem allows communications with endNode controllers using up to 4 technologies.  Mega Modems include a USB port for direct access to remote endNodes via a USB port.  This is essentially the same as having a USB Modem (shown below).  In addition to USB, a wireless Bluetooth link to the Mega Modem allows access to remote endNode devices.  Bluetooth communications supports Virtual COM Port over Bluetooth for easy integration.  In addition to Bluetooth, WiFi TCP is also supported, allowing communications to endNodes by simply opening the IP Address and Port and sending/receiving TCP data to the endNode controller.

We saved the best for last, as the Mega Modem also supports MQTT over WiFi.  Using MQTT communications, the Mega Modem can subscribe to “Transmit” topic and publish to a “Receive” topic using most MQTT brokers.  Raw data to and from the MQTT broker is communicated directly to the endNode.  This allows tremendous control of endNode devices and expansions over MQTT.  We advise the usage of the MQTT features by experienced users, as this will require some deep understanding of how to move data.  For those eager to learn, we may be able to help if you have some foundation knowledge of MQTT.

USB Communications with endNode Devices

USB Communications still remains one of the most popular ways to talk to remote endNode devices.  Simply open a Virtual COM Port over USB and start communicating with endNode devices.  USB modems are capable of talking to many endNode devices, as each communication packet is designed to target a specific endNode controller.  The responses from endNodes will be reflected back to the USB Modem that initiated communications.  The USB Modem operates at 115.2K Baud.

Ethernet Communications with endNode Devices

Ethernet communications with endNode devices is very popular with our customers.  Simply open the IP Address and TCP port of the Ethernet Modem and start sending and receiving TCP data.  Multiple Ethernet modems may be used to communicate with endNode devices, as data from the modem will target a specific endNode.  Similarly, endNodes will reply only to the requester of data ONLY.

RS-485 Communication with endNode Devices

RS-485 communications remains a favorite for our industrial clients.  Using RS-485 is relatively easy to work with, simply communicate with the modem at 9600 baud and the modem will target the user selected endNode (as part of the communications packet).  Data will be reflected from the endNode back to the RS-485 modem and delivered to the RS-485 port.  Like all modems, the communications distance is up to 2 Miles line of sight using the included antennas.

endNodes and Visual Studio

We Developed Alpha Station using Visual Studio to demonstrate the use of endNodes.  Alpha Station allows you to view and set basic configuration settings of remote sensors up to 2 miles away.  Alpha Station supports our Wireless USB Modem, our Mega Modem, and our Wireless Ethernet Modem.  The source code and run-time application is available for download on our web site at

IoT Security and Transparency Statement

All IoT Device Manufacturers should commit to IoT Security and Transparency. As a consumer, you have the right to a IoT Security and Transparency Statement BEFORE purchase, and we encourage all customers to demand this information from all IoT Manufacturers and Vendors.  In an effort to be fully transparent with our customers, we will always disclose the most important security related information at the bottom of each product page for all IoT Devices.  Under no circumstances does NCD use IoT devices to collect customer data, sensor readings, or other information without full disclosure.  As a matter of NCD IoT Security Policy, any IoT device that collects any form of data must be disclosed in the IoT Security and Transparency Statement.  Relevant Security Information pertaining to this particular device is Indicated Below:

  • This Device does not directly communicate to the internet
  • This Device requires a Gateway for communication to the internet
  • This Device Uses 128-Bit AES Encrypted Wireless Communications (Minimum)
  • This Device is Equipped with a Default AES Encryption Key Common to All NCD Wireless Sensors at the Time of Shipping
  • Users Have the Ability to Change the Default AES Encryption Key
  • This Device Requires Physical Access to Change the AES Encryption Key
  • This Device Does Not Have the Ability to Communicate to NCD Servers
  • Firmware Upgrades Require Physical Access to this Device by NCD Engineers ONLY


900HP-S3B Wireless Compatibility Notes

Notice: Compatibility Notes Does NOT Apply to the Following Products:

  • NCD Enterprise Solutions
  • NCD Wireless Sensors
  • NCD Enterprise Modems and Gateways

Notice: Compatibility Notes Applies to NCD Industrial Products, Including Fusion, ProXR, ProXR Lite, Taralist, and Reactor Series Products.

Compatibility Notes

When using an 900HP-S3B communication module, it is essential that you use the ZIGMO_PCB to configure the module settings.  Long-Range wireless sensors may be programmed over the air without removing the communications module.

A 900HP-S3B Modem or a gateway of some kind that support the 900HP-S3B communications module will also be required.


Documentation Downloads


Mechanical Drawing

Wiring Diagrams

Click to Enlarge
Click to Enlarge

Buy Now

Standard Lead Times

Standard lead times are 3-5 business days as we manufacture and test the product at the time of order. Larger orders may require additional time.

Product Identification
UPC: 689860072558
Country of Origin: US
HTS Code: 854231
1+ Pieces
10+ Pieces
25+ Pieces
100+ Pieces

Wireless Communication OptionsChange

Please choose a wireless communications module that is legal for use in your region.  Please note: transmission range will be affected by the product options selected below.  If you are in North America, we strongly suggest the 900MHz option for best results.  If you are in Europe, the 2.4GHz and 868MHz versions are the only legal options.  The 2.4GHz option is now certified for use worldwide.  Please note the 2.4GHz version will not penetrate objects as well as the 900MHz and 868MHz versions.  If you need help choosing a wireless option, please contact us.  This option will determine how we build this product and any applicable accessories that may be displayed below.

Enterprise endNode Communication OptionsChange

endNode devices may be used with the built-in USB port, but if you want to use them over Wireless communications, a modem will be required.  Please choose the Modems below that best fit your application requirements.  You may use many modems to talk to one or more endNode devices.


We Customize Just for You!!

NCD offers many custom IoT electronic design services to help tailor our product to your exact needs.  Whether you are looking for custom firmware, circuit board modifications, metal enclosures, or industrial color printing, we can help you with a wide variety of design services.

Custom IoT Electronic Design Services Process

Most of our users purchase off-the-shelf hardware for initial testing.  Once everything is working, they contact us to build a custom solution which may include specialized changes to the board, firmware, connectors, etc.  Custom boards have many advantages such as reduced wiring, easy installation, small size, less power consumption, and in some cases, an overall reduction in product cost.  Custom IoT Electronic Design Services will have your company name and logo on the board as well as the enclosure.

Customized IoT Electronics

NCD engineers can help build a customized solution for your particular application based on the designs you see on our website.  We can combine devices onto a single board, change the shape, or even some of the components to meet your exact needs.  We also provide turn-key metal enclosures with powder coating and full-color printing on the top side starting at just $500 for setup!  We have more than 20 years of experience in electronics design and manufacturing.  All of our products are designed and manufactured in the USA, so we are here to support the products we make.  We only ask that our customers prototype their needs using our existing products before we customize.

Customization Guidelines

  • Custom designs should be based on our existing product because we can’t build rockets or electric cars over here!
  • We do not provide customization services if it involves the introduction of a new or untested technology.
  • Custom engineering fees depend on your requirements, so please contact us for a quote!
  • We maintain ownership of all designs, including our customized designs as they are based on our existing Design.
  • We will only ship the customized product to you or your authorized agents.
  • We have an NDA available if needed.
  • The turn-around time is about 2-3 weeks.
  • We specialize in low-volume designs, no quantity is too small!
  • We have the ability to scale to large volumes as needed.

Getting Started with Product Customization

All you have to do is contact us and we will walk you through the process from beginning to end, based on your individual needs.  Some people are surprised at how fast we finish CAD design (usually a few hours), but keep in mind, we still have to build your design, which takes considerably more time.  When we customize product, here are the general services we provide:

  • We design the circuit board.
  • We communicate with our customers throughout the customization and manufacturing process.
  • We manufacture surface mount stencils and circuit boards.
  • We program our pick and place machines to build your boards.
  • We build a working sample and run it through our wave solder machine.
  • We test your custom IoT solution.
  • Once the design is finalized it won’t be possible to make changes during production (changes cost money and require us to repeat the above processes)
  • Once it meets all your requirements, we will start production as needed.
  • We work with our metal fabricators to design a metal enclosure if required.
  • You work with our artist to print the top side of the enclosure in full color with your company logo if required.

+MORE App customizations

We partnered with Blynk who have developed the +MORE app.  If you are interested in customization to their +MORE app then we're sure you will enjoy working with them as much as we did.  They can customize the user interface +MORE mobile app at your request.

  • Add new functionality and features to the mobile applications and web dashboard
  • Change/ add data visualizations options

Contact them today for custom App Development!

White-labeled mobile apps and dashboard

Blynk the developer of +MORE has a fantastic team of developers eager to help with your IoT applications.  They offer the following services.

We provide white-label IoT infrastructure:

  • Private IoT cloud
  • Branded mobile applications for remote monitoring and control
  • A branded web dashboard to manage fleet of your devices
  • Big Data analysis with actionable insights
  • Development of machine learning algorithms

Contact them today for all of your IoT cloud needs!
