  • 4-20mA signals at one location wirelessly replicated at remote location.
  • Plug and Play product for most applications
  • Isolated Outputs Allow a Single External Supply to Control All 4-20mA Devices
  • Works as a standalone device. No computer required
  • Intuitive configuration software if modification to stock functionality is required
  • Long Range Wireless Communications with 128-Bit AES Encryption
  • 4-20mA Current Loop Inputs Supply 10V, 16V, or 24V to External Sensors
  • Dual 9-32V DC Power Interface with Power and RGB Status LEDs
  • Long Range Wireless Communications up to 2 Miles at 900MHz
  • 900MHz, 868MHz and 2.4GHz Wireless Options with Antenna
  • Durable Extruded Aluminum enclosures
  • Pluggable screw terminal connections simplify installation and removal when needed

$499.00

Description

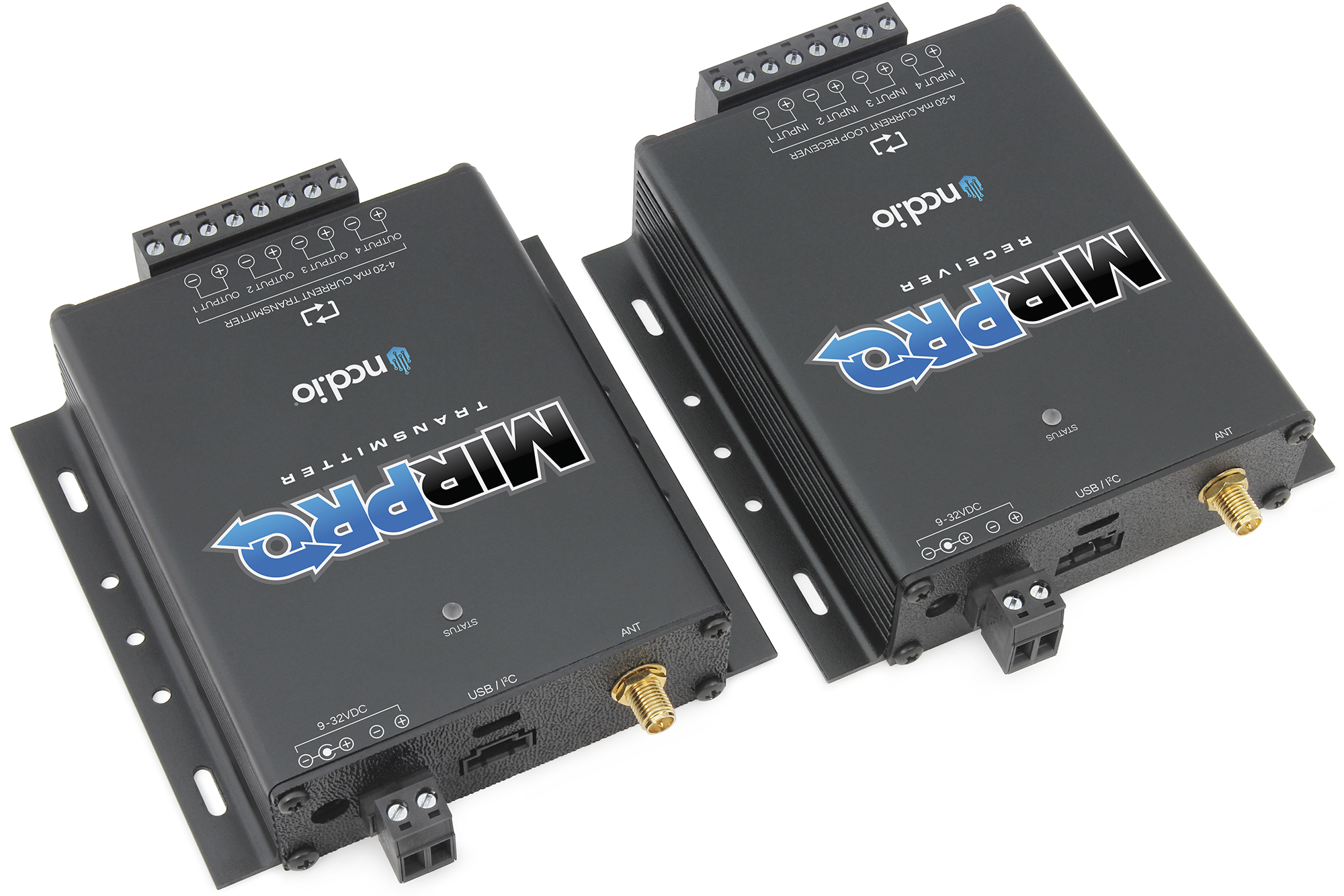

Wireless 4-20ma Transmitter Receiver 4 Channel Pair

To put it simply, the wireless 4-20ma transmitter receiver products will monitor 4-20mA signals on the input board and wirelessly tell the receiver board to set it’s 4-20mA outputs to the same state.  These devices are sold in pairs and operate on a one to one basis with no computer or configuration necessary.

4-20mA Receiver/Input — This part of the setup will connect to 4-20mA sensor. The 4-20mA receiver has an on-board 16V power supply. This power supply can be used to power up the any 4-20mA transducer connected to this receiver. The 4-20mA input module has 4 independent 4-20mA inputs.

4-20mA Transmitter/Output — This part of the setup will connect to PLC or any other device which is expecting 4-20mA signal from the sensor. This wireless 4-20ma transmitter receiver product has 4 isolated 4-20mA output. The 4-20mA output module has 4 independent 4-20mA outputs.

With a two mile line of sight range (28 miles with aftermarket antenna), a set it and forget it install, and the proven reliability of its predecessor the new Mirror Pro Series will fit easily into remote wireless 4-20mA and control applications.

wireless 4-20ma transmitter receiver

wireless 4-20ma transmitter receiver

Configuration and Calibration of these products is simple and intuitive.  No Software is required.  Each board in the wireless 4-20ma transmitter receiver pair hosts a Soft AP web interface allowing you to configure and calibrate the boards from your web browser.  See more about configuration and calibration in the Wireless 4-20ma Transmitter Receiver Pair Manual.

Some of the improvements over the previous Mirror Series:

  • LED Signal Strength Indicator
  • Standard Metal Enclosure
  • Wide Range of User Configurable Settings (see the guide for more info)
    • Timeouts
    • Mode
    • Update Interval

Common Applications

This series is commonly used for:

  • Wireless 4-20mA transmission
  • Wireless PLC 4-20mA Retrofit
  • Replacing an existing “broken” wire too expensive to replace conventionally.
  • Remote sensor monitoring



The new Mirror Pro line is our newest Mirror Series designed from the ground up for simplicity, reliability, and range. The original Mirror Series products have been out for many years now and we’ve reworked it to perfection.

802.15.4 Module Wireless

900HP-S3B Industrial Wireless Mesh

Long-Range Wireless Mesh networking is our favorite of all wireless communication technologies.  This is the ONLY communications technology NCD recommends on the factory floor, operating at a safe 900MHz.  Mesh technology will hop data from one location to another to reach its intended destination, users do not need to do anything other than make sure wireless modules stay within hopping range of each other.  We use the Digi 900HP-S3B module in many of our products, as this is the best industry has to offer.  With a 2 mile range between modules and up to 8 hops, it is possible to cover 16 miles of wireless territory using this technology.  Using high-gain antennas, this module is capable of communicating to a remote module up to 28 miles away.  Please note that data hopping only works between live devices.  Data will not hop between sleeping sensors.  Data will hop from sensors to gateways and modems.  Data will also hop between gateways and modems.

Compatibility

900HP-S3B Wireless Compatibility Notes

Notice: Compatibility Notes Does NOT Apply to the Following Products:

  • NCD Enterprise Solutions
  • NCD Wireless Sensors
  • NCD Enterprise Modems and Gateways

Notice: Compatibility Notes Applies to NCD Industrial Products, Including Fusion, ProXR, ProXR Lite, Taralist, and Reactor Series Products.

Compatibility Notes

When using an 900HP-S3B communication module, it is essential that you use the ZIGMO_PCB to configure the module settings.  Long-Range wireless sensors may be programmed over the air without removing the communications module.

A 900HP-S3B Modem or a gateway of some kind that support the 900HP-S3B communications module will also be required.

Resources

Essential

Datasheets

Product Manual

Drawings

Wiring Diagrams

Click to Enlarge

Buy Now

Standard Lead Times

Standard lead times are 3-5 business days as we manufacture and test the product at the time of order. Larger orders may require additional time.
