Industrial IoT Wireless 2 Channel Vibration Temperature Sensor Gen4
Please note that images above may contain product not included with purchase.
Highlights
- Industrial Grade 2 Channel 3-axis Vibration Temperature Sensor
- Time domain and Overall Vibration Readings
- RPM Measurement
- Always listening Motion Detect Vibration Sensor
- Asset Runtime reporting
- Full Scale Range of ±16g or ±64g
- Configurable sample rate of 200Hz to 25.6KHz
- Hybrid Supercap + D Cell for long battery life
- Built-in machine learning
- IP65 Rated
- Easy Installation with Magnetic Mounting or 1/4″ – 28 UNF Thread
- Ideal for Predictive maintenance application
- NO MONTHLY FEE

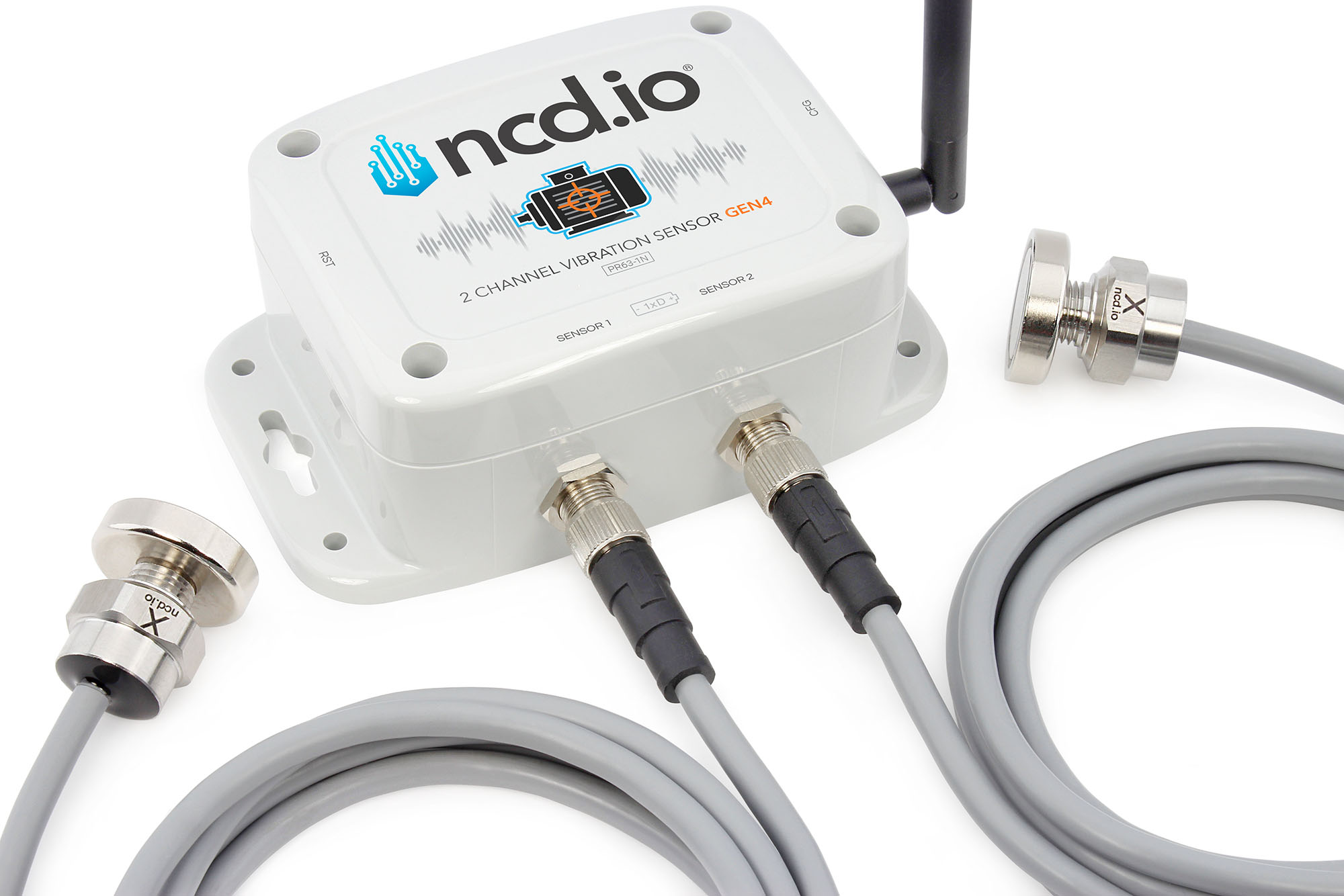

Industrial IoT Wireless 2 Channel Vibration Temperature Sensor Gen4
The Gen4 Wireless Vibration Temperature Sensor is a cutting-edge solution designed for precision machine health monitoring in industrial environments. Engineered to provide real-time vibration analysis, this sensor features a configurable sample rate ranging from 200Hz to an industry-leading 25.6kHz, enabling early fault detection and predictive maintenance for critical assets such as motors, pumps, and compressors.
Key Features
- High-Resolution Vibration Monitoring – Industry-leading 25.6kHz sample rate for accurate condition analysis and early anomaly detection.
- Detachable Vibration Sensor Probe — Make it easy to install
- External Antenna – Long range and can be mounted harms way
- RPM Measurement for Variable Frequency Drives (VFDs) – Ensures precise tracking of motor speeds for performance optimization.
- Advanced Machine Learning Algorithms – Automatically detects abnormal vibration patterns and triggers alerts to prevent failures.
- Temperature-Compensated Readings – Delivers consistent and reliable data regardless of environmental fluctuations.
- Scheduled & Interrupt-Driven Monitoring – Provides flexible data collection and immediate event-based notifications.
- OTA Firmware and Configuration Updates – No physical handling required to keep this sensor and its configuration up to date.
Robust Wireless Communication
- Long-Range Connectivity – Wireless Vibration Temperature Sensor Transmits data up to 2 miles (line of sight) or 1000 feet indoors, ensuring reliable performance across industrial facilities.*
- Mesh Network Technology – Self-forming and self-healing mesh network enables seamless scalability from small installations to large-scale deployments.
- Interference-Free Operation – Utilizes 900MHz or 868MHz frequencies, preventing conflicts with Wi-Fi and Bluetooth networks.
*900MHz and 868MHz only. 2.4GHz reaches up to 1 mile or 300 feet indoors.
Extended Battery Life for Continuous Operation
- Hybrid D-Cell Battery Technology – Wireless Vibration Temperature Sensor Provides both high output capacity and long operational lifespan.
- Up to 5 Years of Battery Life – Ensures minimal maintenance and uninterrupted monitoring.
- Field Replaceable Battery – Easily replace the battery only requiring a spanner wrench.
Seamless System Integration
- Compatible with MQTT, AWS IoT, Azure, Node-RED, and other IIoT platforms for straightforward data integration through Node-Red.
- Designed for industrial automation, predictive maintenance, and remote monitoring applications.
The 2 Channel Vibration Temperature Sensor Gen4 is engineered for high reliability, precision, and efficiency, providing critical machine health insights to enhance operational uptime and asset longevity.
| Feature | V3 Vibration Sensor | Gen4 Vibration Sensor |
|---|---|---|
| Firmware Update Over The Air (OTA) | No | Yes |
| Battery | 6 AA Li-Ion Batteries | D-cell Lithium Battery + Supercapacitor ( 2X the battery life) |
| Transmission Data | – Acceleration – Velocity – Displacement – Peak Frequency – Time Domain Data for FFT (On-Request) – Temperature | – Acceleration – Velocity – Displacement – Peak Frequency – Time Domain Data for FFT (Automatic and On-Request) – Temperature – RPM Calculator – Asset On-Time Calculator |
| Max Time Domain Data Range | 3400 Samples per axis | 8100 Samples per axis |
| Operation Modes | – Processed – Time Domain Data – Processed + Time Domain Data on request | – Processed – Time Domain Data – Processed + Time Domain Data on request – Smart Mode Processed Data / Overall Data – Time Domain on request + Automatic sampling if vibration goes above threshold + 24/7 Sampling |
| Time Domain (Raw) Data on Request | Yes | Yes |
| Automatic Time Domain (Raw) Data Transmission | No | Available in Smart Mode |
| Acceleration Wake/Interrupt Threshold | No | Yes, Optimized with Smart Mode |
| Smart Threshold | No | Available in Smart Mode |
| Smart Skip Interval ( Skip ending data if vibration is below user set thershold) | No | Available in Smart Mode |
| In-built Machine Learning | No | Yes |
| Hardware Accelerator for Accuracy | No | Yes |
| Integrated 8th Order Filters | No | Yes |
| Sample Interval | Min interval 5 min | Min interval 1 min |
Mechanical Drawing
Essential
- Gen4: Understanding Time Domain (Raw) Data Request Commands
- Two Channel Vibration Sensor Gen4 API Overview
- Two Channel Vibration Sensor Gen4 Quick Start Guide
- Two Channel Vibration Sensor Gen4 Datasheet
- Two Channel Vibration Sensor Gen4 Brochure
- Gen4: Understanding Data Transmission in Smart Mode
- Two Channel Vibration Sensor Gen4 User Manual
- Long Range IoT Wireless Sensor FAQ
Documentation Downloads
Not for use in outdoor applications or for use in excessive temperature conditions. Prolonged freezing will prevent batteries from functioning until thawed, using extended temperature range industrial batteries may improve the useful temperature range. Extended freezing applications should use a full-time powered solution. Prolonged exposure to extreme humidity conditions may damage this device. The sensing element is rated for use for 5 years and may be replaced. Exposure to high temperatures may cause the batteries to leak, causing permanent damage to this device. NCD Warranty does not cover battery corrosion or use in excessively smoky environments under any circumstances.
