CP-ATS Industrial Wireless Thermocouple High Temperature Sensor

Industrial Wireless Thermocouple High Temperature Sensor

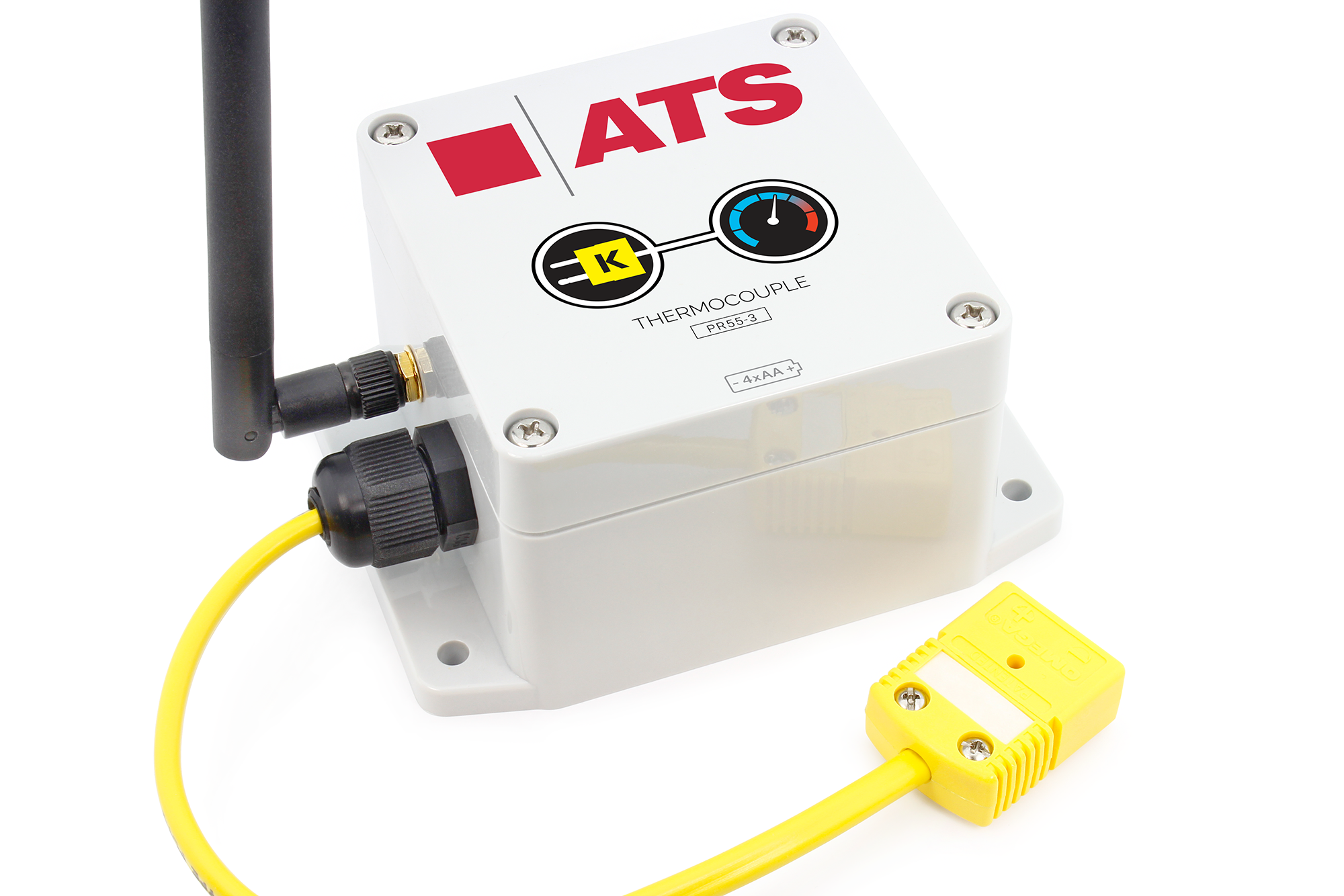

NCD Industrial wireless thermocouple High Temperature sensor is capable of measuring extreme high and low temperatures.  This Industrial wireless thermocouple temperature sensor includes one K-Type thermocouple connector. An optional XCIB K Type thermocouple from Omega.com with a 3 foot cable and 20 AWG connection is available as an option, rated for temperature measurement applications up to 1090°C (2000°F) with an accuracy of ±1.1°C. This Industrial wireless thermocouple device comes with K-type connector, which can be used to connect a higher temperature range thermocouple if needed. This sensor includes integrated hot and cold junction to provide highly accurate readings.  This  Industrial wireless thermocouple transmitter is ideal for high temperature measurements, industrial boiler temperature measurements, liquid temperature measurement, and temperature monitoring of food storage units.  This Industrial wireless thermocouple sensor is designed to consume extremely low power and send data at extremely long distances of up to 2 miles line of light or 28 miles using high gain antennas.

Optional Probe Specifications

Wire Gage: 20 gage solid–standard limits of error
Insulation: Nextel® ceramic fiber
Overbraiding & Fittings: Inconel 600®
Temperature: 980°C (1800°F) continuous,1090°C ( 2000°F) short-term service, depending on thermocouple type.
Termination: Ceramic beaded leads with compensated spade lugs, OMEGA™ OSTW 220°C (425°F) male connector, or OMEGA™ NHXH high temperature 650°C (1200°F) ceramic male connector

Powered by just 4 AA batteries with a operational lifetime of 500,000 wireless transmissions, you can expect to achieve up to 10 years of battery life depending on environmental conditions and the transmission interval you choose.

There is no better IoT Long Range Wireless Thermocouple Sensor on the market today.  Nothing compares with the long range, the price, the accuracy, the battery life, or the security features we have to offer.

Transmission Interval

This device sends data periodically, based on user-preset timing intervals.

High Temperature Sensor Applications

• Food Storage Temperature Monitoring
• HVAC High-Side Low-Side Temperature Monitoring
• Industrial Boiler Temperature Measurements
• Liquid Temperature Measurement
• Oven Temperature Monitoring
• Concrete Temperature Monitoring

Industrial Wireless vs Long Range IoT

We realize that the Industrial Wireless line and the Long Range IoT line seem very similar and in fact are. The Industrial Wireless line has a few improvements over its counterpart in the Long Range Wireless line in form and fit, but maintain the same function.

Individual Industrial Wireless lines may have a longer battery life, optional off-board sensors, more accurate readings, or many other differences that are stated on the product’s web page.
