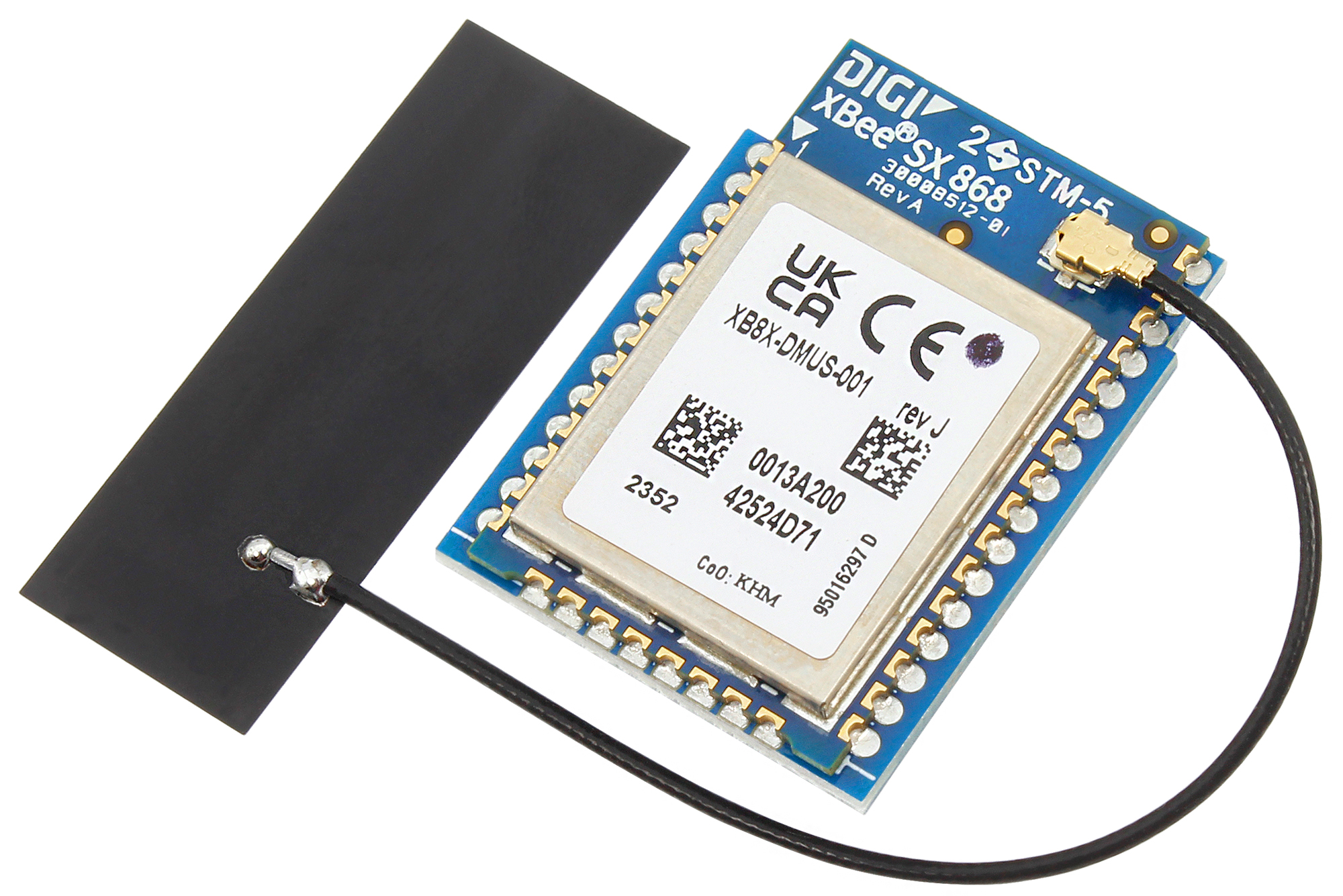

868MHz Long-Range Wireless Mesh Communications Module with Patch Antenna
Please note that images above may contain product not included with purchase.
Highlights
- Operates in the 863–870 MHz band
- Low-power RF module built on a Silicon Labs EFM32 microcontroller and Analog Devices ADF7023 transceiver
- Listen-Before-Talk and Adaptive Frequency Agility — 100 seconds of airtime per hour per 200 kHz channel, across up to 28 selectable channels
- Design includes SAW filter for optimal performance in noisy RF environments
- Software-selectable channel mask for interference immunity
- DigiMesh networking topology for redundancy and reliability
- Advanced sleep modes: sleeping routers, pin sleep, cyclic sleep
- Simplified AT command set and advanced XBee API
- Over-the-air firmware updates
- Configuration using XCTU
- OTA and pin compatible with legacy Digi XBee 868LP
- THIS IS A COMPONENT TO OTHER NCD DEVICES, NOT SOLD INDIVIDUALLY
The Digi XBee SX 868 operates in the 863–870 MHz band and runs either Digi’s proprietary DigiMesh® or a point-to-multipoint networking protocol. The module is built around a low-power Silicon Labs microcontroller and an Analog Devices ADF7023 transceiver, with an integrated SAW filter for strong interference rejection.
Rather than a fixed duty cycle, the XBee SX 868 uses LBT + AFA — Listen Before Talk and Adaptive Frequency Agility. It samples the radio environment before transmitting and shifts to a different channel when it detects interference. The scan completes in microseconds, so it does not affect throughput. Digi documents an airtime budget of 100 seconds per hour per 200 kHz channel across up to 28 selectable channels, which scales the effective duty cycle with the number of channels enabled.
THIS IS A COMPONENT TO OTHER NCD DEVICES, NOT SOLD INDIVIDUALLY
Documentation Downloads
Please contact Digi.com for the latest documentation for this device.
Notice: Digi.com wireless modules are shipped pre-configured for best compatibility with our products.
